IP Cameras

Learn how design and features help you pick the right IP video camera for your needs

Introduction: Why IP Cameras Matter

Modern IP video camera systems are a cornerstone of facility safety and security. They provide constant visibility into your premises, helping deter crime and ensure compliance with safety regulations. Unlike old analog CCTV, IP cameras deliver high-definition digital video over the network, making it easy to monitor multiple locations remotely and archive footage for investigations. The result is a safer workplace, real-time awareness of incidents, and documented evidence for regulatory compliance.

What is an IP Camera?

An IP camera (Internet Protocol camera) is a digital video camera that sends and receives data over a network (Ethernet or Wi-Fi) rather than through a direct video cable. This means each camera is essentially a network device with its own IP address. IP cameras capture video, then encode and transmit it as data packets. They often include features like onboard storage (SD cards) and encryption for secure video streaming. IP cameras can be accessed through software or cloud platforms, allowing authorized users to view live feeds or recordings from anywhere. Because they run on standard networks, IP cameras easily integrate with IT infrastructure and support higher resolutions and intelligent analytics that analog cameras cannot.

Key benefits of IP cameras include: higher image quality (from 2MP up to 4K or more), flexible wireless or wired deployment, and the ability to power the camera through the network cable via PoE (Power over Ethernet). They also support two-way audio in many cases, and use open standards so different brands can work together on the same system.

Common IP Camera Styles

Commercial-grade IP cameras come in various form factors, each suited to different applications. Omni Data works with all major styles to fit your facility’s needs. Here we introduce the most common types and when to use each:

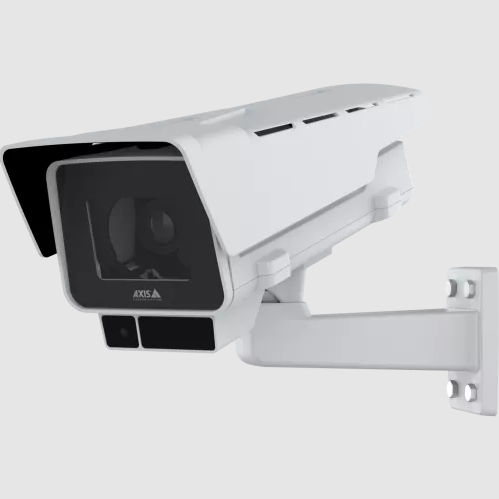

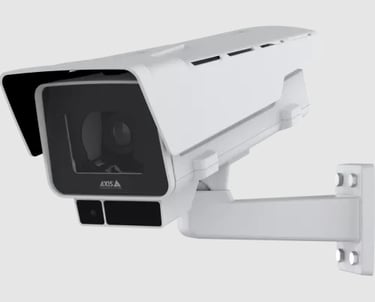

Box Cameras

Box cameras are the traditional, rectangular security cameras often seen in older installations. The camera body is a visible box shape, usually with a protruding lens. These units are modular – you can attach different lenses (for zoom or low-light needs) and often place the camera in a separate environmental housing if outdoors. Because the lens and direction are clearly visible, box cameras provide a strong visual deterrent, making it obvious the area is under surveillance.

Use cases: Box cameras are common in banks, warehouses, or perimeters where you might need a specialized lens (e.g. a long-range telephoto lens for license plate capture at a gate). They’re also used in extreme environments with the appropriate housing – for example, monitoring a production line in a factory furnace area with a heat-resistant enclosure. The flexibility to swap lenses means box cameras are chosen when specific focal lengths or fields of view are needed.

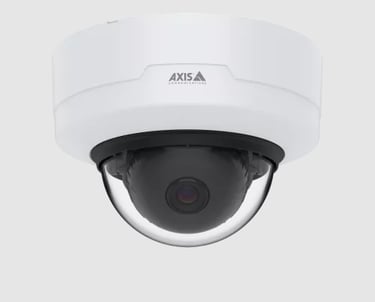

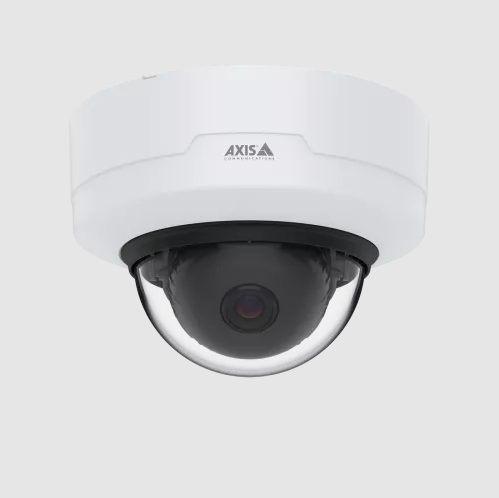

Dome Cameras

Dome cameras are named for their dome-shaped transparent cover. The camera is housed inside a protective dome, which can be tinted or smoked to obscure which way the camera is pointing. Dome cameras are very popular for both indoor and outdoor use. They have a low-profile, sleek appearance that blends into ceilings or walls, and their design makes it hard to tell where the camera is aimed – useful for omnidirectional deterrence. Many dome models are vandal-resistant (high IK rating), with durable housings that can withstand impacts or tampering, ideal for public areas.

Use cases: You’ll find dome cameras in offices, retail stores, schools and hospitals – for example, mounted on lobby ceilings or in hallways. Because they can cover wide angles and are tough to tamper with, they’re great for locations like school corridors or building entrances. Outdoor dome cameras (often rated IP66/67 for weather) might monitor a building’s parking garage or entrance, with the dome protecting the camera from rain and vandals. Some high-end PTZ cameras (pan-tilt-zoom) also come in a dome format, allowing them to rotate within the dome bubble.

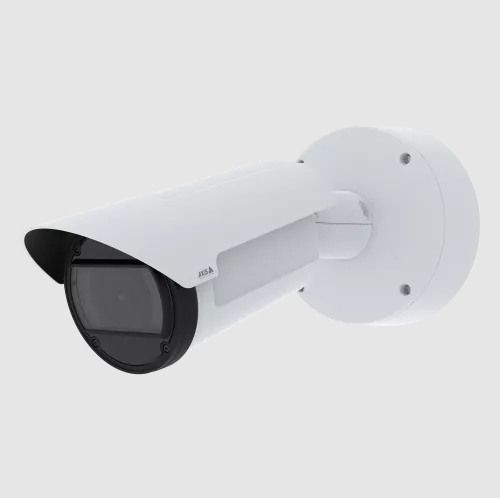

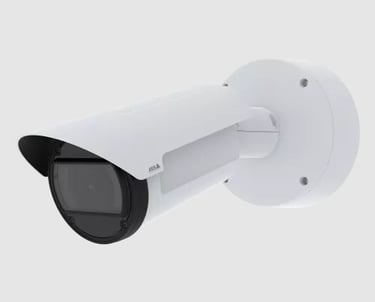

Bullet Cameras

Bullet cameras have a distinctive cylindrical shape, resembling a “bullet” or tube. They typically mount to a wall or eave with a bracket and point in a fixed direction. Bullet cameras usually have a visor or sun-shield over the lens and often come with built-in infrared (IR) illuminators for night vision. These cameras are almost always weatherproof and are commonly used outdoors. Because of their shape, bullet cameras are easy to spot – which can be a deterrent to intruders – but they can also be mounted in out-of-reach areas to avoid tampering. They are valued for their straightforward installation and the ability to point the camera exactly where needed with a focused field of view.

Bullet (top) and dome (bottom) security cameras. Bullet cameras are larger and more conspicuous, often used on exterior walls for visible deterrence, while dome cameras are compact and discreet for indoor ceilings.

Use cases: Bullet cameras are ideal for perimeter security – for instance, mounted on the exterior walls of a warehouse or along a fence line, watching over loading docks, driveways, or open yards. Their built-in IR LEDs provide long-range night vision, so they’re often chosen for unlit outdoor areas like parking lots. Inside a large indoor space like a big-box retail store, you might also see bullet cameras on support columns to clearly cover specific aisles or high-value areas. Anytime you need a clearly directional camera with potent night vision, bullet-style is a good fit.

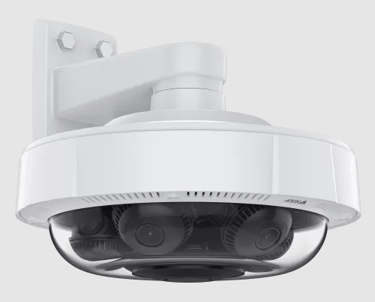

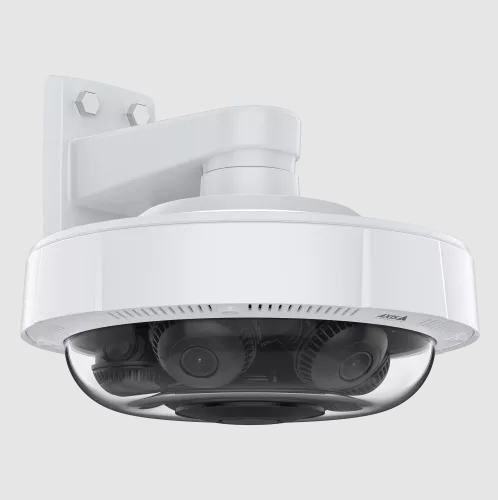

Panoramic (180°/360°) Cameras

Panoramic cameras provide ultra-wide coverage using either fisheye lenses or multiple image sensors. A single panoramic camera can take the place of several “fixed” cameras by capturing a 180-degree or full 360-degree field of view. For example, a fisheye IP camera uses a single hemispherical lens to cover an entire room when ceiling-mounted, while a multi-sensor panoramic might have four lenses in one unit, each covering a portion of the scene to stitch together a wide panorama. The benefit is comprehensive situational awareness with fewer devices – one panoramic camera can monitor large areas, track the flow of people, and detect incidents across a broad scene. This can significantly reduce blind spots and even lower costs by reducing camera counts.

A 360° fisheye panoramic security camera mounted under an overhang. Panoramic cameras use fisheye lenses or multiple sensors to capture wide-area views (180° or 360°) with a single device.

Use cases: Panoramic cameras are commonly used in wide-open areas. For instance, one 360° fisheye camera on a lobby ceiling can cover the entire lobby and all entry points at once. In retail, a panoramic camera mounted in the center of a store’s ceiling gives complete coverage of the sales floor (often used to analyze traffic flow as well as security). They’re also great at hallway intersections or large meeting spaces where you want a full room view. Outdoors, a multi-sensor 180° camera on the side of a building can monitor a whole parking lot or courtyard. The trade-off is that while coverage is broad, the per-object detail may be lower than a dedicated camera, so they’re best for overview and general monitoring, often supplemented by other cameras for close-ups if needed.

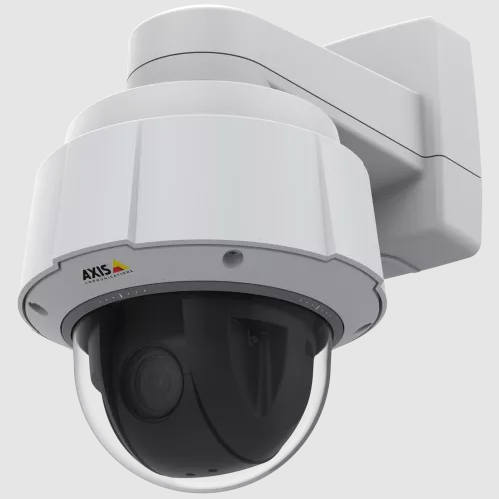

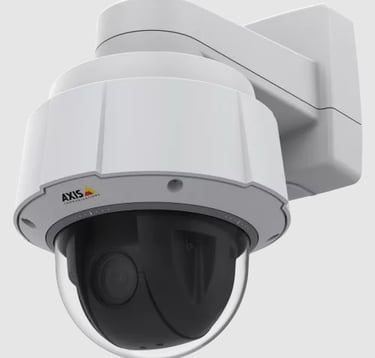

PTZ Cameras

PTZ (Pan-Tilt-Zoom) cameras are capable of remote mechanical movement: they can pan (swivel side to side), tilt (up and down), and zoom in or out. These robotic cameras offer both wide coverage and the ability to zoom in for detail with a single unit. PTZ cameras typically have powerful optical zoom lenses (20×, 30× or more), allowing an operator to read a license plate or recognize a face from far away. They can be controlled manually by security personnel or programmed to run guard tours (automatically moving between preset positions on a schedule). Modern PTZs often include auto-tracking, where the camera can lock onto a moving person or vehicle and follow it. PTZ cameras are usually dome-style or turret-style devices to enable the internal movement, and they tend to be larger and require more power (often High-PoE) to drive their motors and heating elements.

Use cases: PTZ cameras are used in active surveillance scenarios – for example, a security operations center monitoring a large campus or city streets will use PTZs to actively follow incidents. One PTZ camera mounted high on a pole can cover a huge area like a stadium parking lot; an operator can pan around for a live overview and zoom in to check on specific locations or track an intruder. They’re also common at perimeters of critical infrastructure (like around a power plant or airport fence) where a PTZ can respond to alarms by steering to a zone and zooming in. Because PTZs can “look around,” they complement fixed cameras; a fixed camera might detect motion and trigger the PTZ to zoom in on that spot. Keep in mind that if a PTZ is looking in one direction, it might miss something behind it – so they are often used in combination with 360° cameras or multiple fixed cameras to ensure nothing is missed. Still, their versatility in covering large areas and examining details on demand makes them invaluable in many professional systems.

Mounting Options for Cameras

Choosing the right mounting hardware is important to ensure your cameras have the optimal field of view and are installed securely. Omni Data provides several mounting options to adapt cameras to any environment:

• Wall Mount: A bracket that affixes the camera to a vertical surface (wall or building façade). Wall mounts are very common for bullet cameras and turret domes on exterior walls. They can be adjusted for height and angle, making them versatile for watching over entryways, driveways, and building perimeters. This mounting keeps cameras conspicuous at eye-level or higher on walls, acting as a strong deterrent.

• Ceiling Mount: These attach to horizontal surfaces like ceilings, overhangs, or soffits. Ceiling mounts are typical for indoor dome cameras (e.g. in an office or retail store) to provide a top-down view. They are more discreet than wall mounts – ideal for covert surveillance or preserving aesthetics. Ceiling mounting also often gives a wide coverage area since the camera can see in all directions when placed centrally.

• Pole Mount: Pole mounts strap or bolt the camera to a pole or column, useful when there are no walls or ceilings nearby (e.g. parking lots, open warehouses, outdoor lots). By mounting on light poles or dedicated pedestals, you can surveil open areas like parks or large yards effectively. Pole mounts often are used with PTZ cameras or 360° cameras for 360-degree views in the open. The height of poles can be leveraged to cover a large radius.

• Parapet Mount: A specialized mount that attaches to the edge of a building’s roof (the parapet) and typically includes an arm that hangs over the side of the building. This allows a camera to look straight down along the building exterior or cover areas just below the roofline. Parapet mounts are common in commercial and industrial facilities where cameras need a high vantage point from the roof edge for overall visibility. They let you service the camera by swinging it back over the roof (so technicians don’t need boom lifts). For example, a PTZ on a parapet mount atop a warehouse can pan over the building’s sides and parking areas with no obstructions.

Each mounting option has its ideal use-case, and often our design will combine them – for instance, pole mounts for parking lots, wall mounts on building exteriors, and ceiling mounts indoors. Proper mounting ensures stable footage (minimal vibration), weather protection, and the desired coverage angle, so our team selects mounts as carefully as cameras during the design.

Network & Power: PoE Makes it Simple

An advantage of IP camera systems is that they can use Power over Ethernet (PoE), simplifying installations by using one cable for both data and power. A Cat5e/Cat6 network cable from a PoE switch or injector can power the camera up to 100 meters (~328 feet) away – no need for a separate electrical outlet at the camera location. This greatly reduces cabling costs and allows flexible placement (you only need to run network cable).

Standard PoE (802.3af) supplies up to 15.4W per port, which is plenty for most fixed cameras (typical IP dome or bullet cameras consume ~5–12W). PoE+ (802.3at) doubles that, providing up to 30W – used for cameras with heaters, blowers, or more power-hungry processors (like multi-sensor panoramics or small PTZ cameras). The latest High-Power PoE standards (802.3bt, “PoE++”) can deliver 60W (Type 3) or even ~90W (Type 4) per port for extremely demanding devices. For example, a large outdoor PTZ with continuous 360° motors, IR illuminators and a wiper might require PoE++ to function fully. In fact, PTZ models with heater/blowers for harsh weather often ship with 60W midspan injectors to ensure they get enough power to move and stay warm in winter.

When using high-power PoE, we take into account cable distance and quality – to avoid voltage drop that can occur at the upper limits of 100m runs. (For long runs, solutions include PoE extenders, fiber optic links with separate power, or locating intermediate switches closer to the cameras). We also consider the PoE power budget on your network switch: a 24-port PoE switch might supply, say, 370W total, so we plan the camera distribution such that high-draw cameras don’t overload the system.

In summary, PoE allows your IP cameras to plug into the network and start working with minimal fuss. It’s a safe, low-voltage power method and built-in negotiation protocols (802.3af/at/bt) ensure each camera draws only what it needs. Omni Data typically uses PoE switches in our installations to make future expansions and maintenance easy – one centralized UPS-backed source can keep all cameras running through power glitches, and no one has to change batteries or install outlets in awkward places. High-PoE options are available for the latest multi-sensor and PTZ cameras so you aren’t limited in device choice.

Resolution: From HD to 4K and Beyond

Image resolution determines how clear and detailed the video from a camera is. IP cameras today range from around 2 Megapixels (MP) up to 8MP or higher. To put that in perspective: 2MP is equivalent to 1080p Full HD (1920×1080 pixels), which is already about 2× the resolution of old analog CCTV. Many common cameras are 4MP (1440p) or 8MP (4K UHD). A 4K security camera with 8 million pixels provides roughly four times the detail of 1080p. This means finer details – like faces or license plates – remain clear when you zoom in digitally, and one camera can cover a larger area while still achieving identification-level detail in any part of the scene.

However, more resolution isn’t always better for every application. Higher resolution video consumes more bandwidth and storage. For example, a 4K camera recording continuously will use significantly more hard drive space than a 2MP camera at the same frame rate and compression. When designing a system, we match camera resolution to the coverage needs:

• 2MP (1080p): Great for standard indoor surveillance and small areas. It can capture faces within, say, a 30-foot range clearly. Advantage: lower bandwidth/storage, and good low-light performance per pixel (larger pixels on the sensor can gather more light).

• 4MP to 5MP: A mid-step offering more detail, useful for slightly larger areas like school hallways or office floors. It provides a sharper image than 1080p without the full bandwidth hit of 4K.

• 8MP (4K UHD): Ideal for wide areas or high-detail overview shots – for instance, a single 4K camera on a building rooftop could cover an entire parking lot. You might use 4K in lobby areas to be able to zoom in on faces across the room, or at main entrances to capture forensic-level detail. Keep in mind low-light capability can sometimes drop as resolution increases (smaller pixels), so we use models with excellent sensors or supplemental IR lighting when deploying 4K.

• Multi-sensor 8–32MP: Some panoramic cameras effectively have 4 sensors (e.g., 4×4K = 32MP total). These are for 180°/360° coverage and are usually managed differently (since they split the view into quadrants). They provide huge coverage and high detail, but require ample network and storage resources.

Omni Data’s experts consider the “pixels per foot” requirement based on what you need to see. For instance, identifying a person’s face reliably might require ~80 pixels per foot at the target distance. We’ll choose a resolution and lens that meets that requirement. The good news is video compression (H.264, H.265) has improved to make even 4K streams efficient to store. And with smart recording (only recording on motion or events), even high-resolution cameras can be deployed without breaking the storage bank.

Frame Rate (FPS) and Why It Matters

Frame rate refers to how many frames (images) per second the camera captures. Common settings in surveillance are 15 FPS, 20 FPS, 30 FPS, or even 60 FPS on high-end cameras. Higher frame rates result in smoother video, which can be important for capturing fast movement. For example, at 7.5 or 15 FPS you might notice motion blur or choppy playback of a person running, whereas at 30 FPS the motion looks more true-to-life. Movies are typically 24 FPS for reference, and TV is ~30 FPS.

For most security applications, 15–30 FPS is sufficient to capture incidents while balancing storage needs. 15 FPS can reliably record a person walking across a room and you’ll still see what happened, though 30 FPS will look smoother especially for fast actions (like a fight or someone sprinting). 60 FPS cameras are available and are used in niche cases – such as monitoring cash counting (to see sleight of hand) or capturing vehicles moving at high speed through a gate. They can also aid video analytics in more accurate frame-by-frame analysis of fast events.

The trade-off: higher FPS dramatically increases the amount of video data. A 30 FPS recording uses roughly twice the storage of a 15 FPS recording, all else equal. In practice, we often set outdoor or less critical cameras to ~15 FPS, and indoor or critical cameras to 20–30 FPS. This provides a good balance where important footage (like a door entry) is fluid, and general overview footage doesn’t overwhelm your NVR. Our systems also often employ motion-based recording – during periods of no activity, frames can be dropped or the camera might switch to a lower frame rate, then ramp up to full frame rate when motion is detected, further saving space.

In summary, frame rate matters for capturing motion clearly. Omni Data will configure each camera’s FPS based on its purpose: e.g., a camera overlooking a parking lot might be fine at 12 FPS, but one covering a busy lobby where incidents could occur would be set at 30 FPS to ensure nothing is missed between frames. We’ll also ensure your recording hardware and network can handle the combined frame rates of all cameras.

Edge Processing & Smart Analytics

One of the most exciting aspects of modern IP cameras is the built-in intelligence now available. Today’s cameras aren’t just dumb eyes; they are increasingly “smart” – equipped with CPU and AI capabilities at the edge (on the device) to analyze video in real time. This edge processing can detect events, reduce bandwidth by streaming only important footage, and provide instant alerts without needing a server to process every frame.

Leading camera manufacturers have developed advanced analytics that run on the camera firmware itself:

• Axis Communications: Many Axis cameras include AXIS Object Analytics, an AI-based edge suite that can detect and classify humans vs vehicles and track their movements. Axis cameras can also run specialized analytics like license plate recognition at the edge – for example, an Axis camera at a gate can read plates and decide whether to open an access barrier. They support third-party analytic apps via the Axis Camera Application Platform, meaning functionalities like people counting or loitering detection can be added to the camera itself.

• Avigilon (Motorola Solutions): Avigilon’s high-end cameras come with self-learning video analytics built in. These AI-powered cameras can recognize people and vehicles, and even unusual activities. The system learns over time to reduce false alarms. Avigilon cameras and software can perform facial recognition, license plate recognition, and anomaly detection, alerting operators to events like a person loitering or a crowd forming. Notably, Avigilon’s analytics can handle very high resolutions (they have cameras up to 30 MP) and still flag small objects thanks to their AI training.

• Hanwha Techwin (Wisenet): Hanwha’s latest Wisenet cameras incorporate AI-based object detection and classification. They can detect and classify people, vehicles, faces, license plates, and more in real time. The metadata (e.g., “person wearing red shirt” or “blue sedan”) is streamed to the VMS, allowing efficient forensic search later. Hanwha cameras also offer other analytics like intrusion detection zones, line crossing, loitering, and even sound classification on some models (detecting glass break or gunshot sounds).

• Digital Watchdog (DW): Digital Watchdog’s MEGApix and “DW Spectrum” cameras include Intelligent Video Analytics (IVA) at the edge. These support rules such as line crossing, object entering/leaving an area, object left behind, tampering detection, etc. Their DW AI cameras leverage deep learning for object recognition and tracking, with the ability to filter out foliage motion or shadows to focus only on people and vehicles. The cameras can generate real-time alerts (e.g., send an alarm if a person is loitering in a restricted zone) without a server doing the heavy lifting.

• Alarm.com Cameras: Alarm.com, known for smart home/business security, also provides cameras with onboard analytics. These cloud-managed cameras use AI to differentiate between people, vehicles, and animals, so you get intelligent alerts (for instance, notify if a person is at the back door, but ignore stray cats or moving branches). They are great for reducing false notifications in monitored alarm scenarios. While Alarm.com’s system is a closed platform, Omni Data integrates these for clients who use Alarm.com for intrusion and want video verification tied in.

Why edge analytics matter: By processing video at the camera, the system can send metadata and alerts upstream rather than raw video all the time. This saves bandwidth and enables faster alerts. For example, a camera can internally decide “a person crossed Line A at 3:35 PM” and just send that event to the server (and start recording video clip at that moment). If the network connection is lost, many cameras can still record to an SD card and even continue analytics at the edge – so no event is missed. Edge analytics also scale better; you’re not funneling all video to one huge analytics server, each camera is contributing its share of brainpower.

At Omni Data, we leverage these smart cameras in our designs. During the consultation, we’ll discuss which analytics are valuable for your operations – whether it’s license plate capture at a gate, facial recognition at secure entrances, people counting in a lobby, or loitering detection in a parking lot. Our solutions often integrate these camera-based analytics with the overall security system – for instance, a camera can trigger a door lock alarm or overhead speaker when it detects someone in a restricted area after hours. Brands like Axis, Avigilon, Hanwha, DW, and Alarm.com are all part of our toolkit to build an intelligent, proactive surveillance system.

Integration with VMS and Omni Data SecNet™

Your IP cameras are only as powerful as the software managing them. That’s where the VMS (Video Management System) comes in. Omni Data’s approach is to integrate IP cameras into a unified platform – we ensure all cameras, regardless of brand, work seamlessly with the VMS and with other security systems like access control or alarm monitoring.

We use industry standards like ONVIF (Open Network Video Interface Forum) to ensure cross-compatibility. ONVIF compliance means an IP camera speaks a common protocol for video streaming and analytics events. This makes it easier to mix and match camera brands and connect them to a VMS. All major camera brands we deploy – Axis, Hanwha, Avigilon, etc. – support ONVIF profiles, so our clients aren’t locked into one vendor. We can, for example, put a specialty thermal camera from one manufacturer onto the same system as standard cameras from another.

Omni Data’s own SecNet™ architecture is our secure network design that ties together cameras, access control, intercoms, and sensors into one ecosystem. In practice, this means the IP cameras we install can feed into a central management software (often on servers or on cloud) where you can live view, search recordings, and receive alerts. SecNet™ is built with cybersecurity in mind – we isolate the camera network from your corporate LAN to prevent unauthorized access, and we apply network hardening (unique passwords, firmware updates, encryption).

Importantly, we make sure your video surveillance system can be monitored how you need: whether that’s an on-premises NVR/VMS (like Milestone, Avigilon Control Center, WaveVMS, etc.) or a cloud VMS service that Omni Data provides. Our team will integrate the cameras with your existing systems – for example, linking camera alarms (like a door forced open, or motion in a sterile zone) to trigger alerts in the access control system or to notify security staff via our SecNet dashboard.

By having an integrated SecNet™ approach, all components “talk” to each other. A few integration examples:

• When an access card is swiped at a door, the nearest camera view can pop up on the VMS or at a guard station.

• If an AI camera detects a person after hours, it can send a snapshot to the security desk or mobile app and simultaneously signal the intrusion alarm panel.

• Video from cameras can be streamed securely to remote devices (with proper authentication) so management or first responders can view an incident in real time.

• Our SecNet platform also ensures recording redundancy – critical cameras can record to both an NVR and an SD card failover, or even to a secure cloud, so there’s no single point of failure.

The bottom line: Omni Data’s IP camera systems are not siloed. They are part of a comprehensive security network that we tailor to each client. By choosing open-platform cameras and integrating via SecNet™, we give you a cohesive solution that can scale and adapt. You’ll have one interface to search video, manage user permissions, and respond to events, simplifying the job of your security and facilities teams.

Ready for a Safer Facility?

Investing in an IP video surveillance system is an investment in peace of mind, safety, and actionable intelligence about your facility. Omni Data brings deep expertise in designing and deploying these systems end-to-end – from selecting the right camera types and mounts, to configuring network power and storage, to leveraging smart analytics that proactively protect your people and property.

Every building and security objective is unique. That’s why we offer a no-obligation consultation to assess your site and requirements. Our experts will work with you to map out camera locations, discuss coverage goals, and design a custom solution aligned with your budget. We handle everything as a design-build security integrator – consultation, installation, network configuration, and ongoing support/training.

Let Omni Data help you strengthen your security posture with modern IP video technology. Contact us today to schedule a consultation. We’ll survey your facility and deliver a comprehensive plan (leveraging our SecNet™ architecture) to keep your organization safe, compliant, and connected. With Omni Data as your partner, you’ll gain a state-of-the-art surveillance system – and the confidence that comes with knowing your environment is protected by the best in the business.

We look forward to helping you build a safer tomorrow through intelligent IP video solutions. Get in touch with Omni Data to get started on your custom design-build surveillance solution now.

FAQs

What is an IP camera?

An IP camera transmits video digitally over a network, offering flexible installation.

What forms do they come?

How do they connect?

What features vary among models?

Can I view footage remotely?

Form factors include dome, bullet, and box cameras, each suited for different uses.

IP cameras connect via Ethernet cables or Wi-Fi, with Power over Ethernet simplifying setup.

Differences include resolution, night vision, motion detection, and audio capabilities.

Yes, most IP cameras allow remote viewing via apps or web browsers for convenience.
